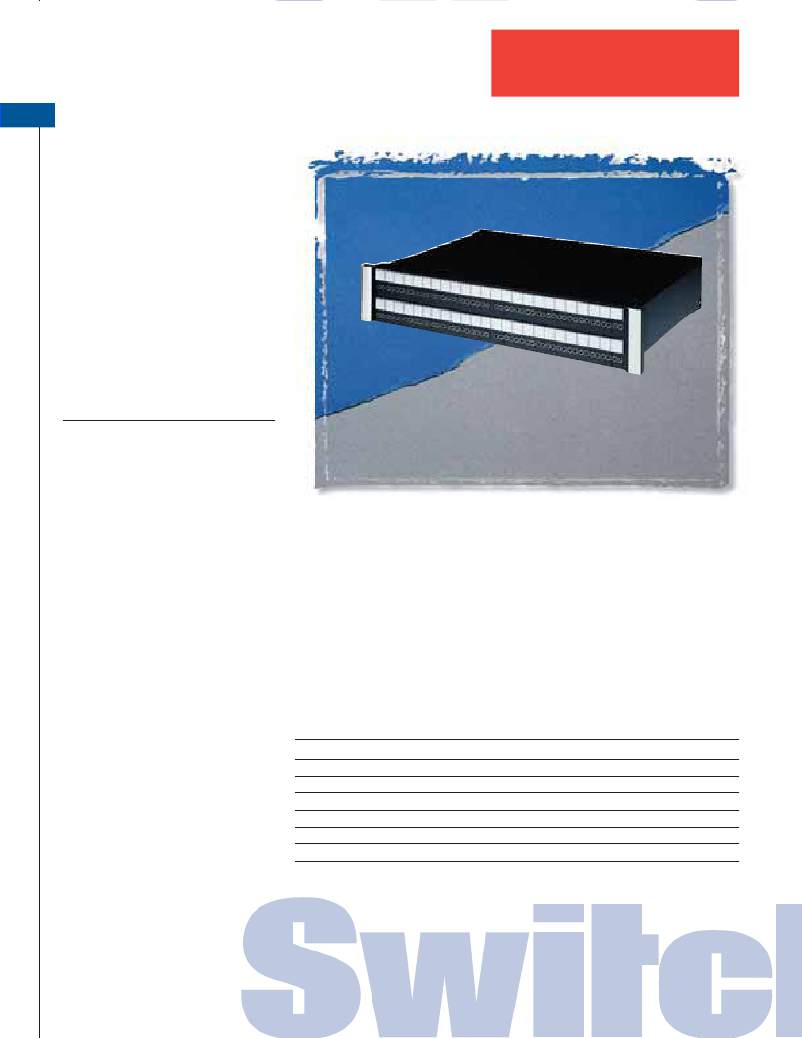

TTPW96K Wired Series
Features and Benefits
? Unit features 96 TT style jacks in
2RU (3.5"H) space
? Utilizes AES/EBU wiring for
complete digital compatibility
? Attractive, corrosion resistant
nickel-plated, steel frame jacks
? Gold-plated switching contacts
reduce contact resistance, improve
reliability
? Rugged, attractive black epoxy-
finished steel chassis
? Extra wide designation strips for
easy channel identification
Specifications
Materials
Jacks
Frame: Nickel-plated steel
Bushing: Nickel-plated brass
Tip, Ring and Shunt Springs: Nickel
silver with welded contacts
Assembly Screws: Zinc-plated
steel
Welded Contacts: Gold alloy
TTPW96K3NS
The TTPW96K Series was developed with the AES/EBU digital standard in mind.
As a standard, the TTPW96K utilizes 110 Ohm cabling inside.
Panel
Front Channel:
Black anodized aluminum
Frame: C.R.S. black epoxy painted
Designation Strips: Black
polycarbonate 94V-0
Designation Strip Covers: Clear
polycarbonate
Jack Inserts: Thermoplastic
polyester
Mechanical
Life: 30,000 cycles
Insertion Force: 7 lbs. maximum
Electrical
Contact Resistance: 30 milliohms
maximum initial
Insulation Resistance: 10,000
megohms maximum
Dielectric Withstanding Voltage:
500 VAC at 60 Hz
Working Voltage: 140 VDC
maximum
Current Rating: 100 milliamps
Ordering Information
Part Number Type of Jack No. of Jacks
Description
Withdrawal Force: 1 lb. minimum
Environmental: 0?C to +50?C
TTPW96K1NN
TTPW96K1HN
TTPW96K1NS
TTPW96K3NN
TTPW96K3HN
TTPW96K3NS
TT
TT
TT
TT
TT
TT
96
96
96
96
96
96
1.75" High, non-normals
1.75" High, half normals
1.75" High, normals strapped
3.5" High, non-normals
3.5" High, half normals
3.5" High, normals strapped
